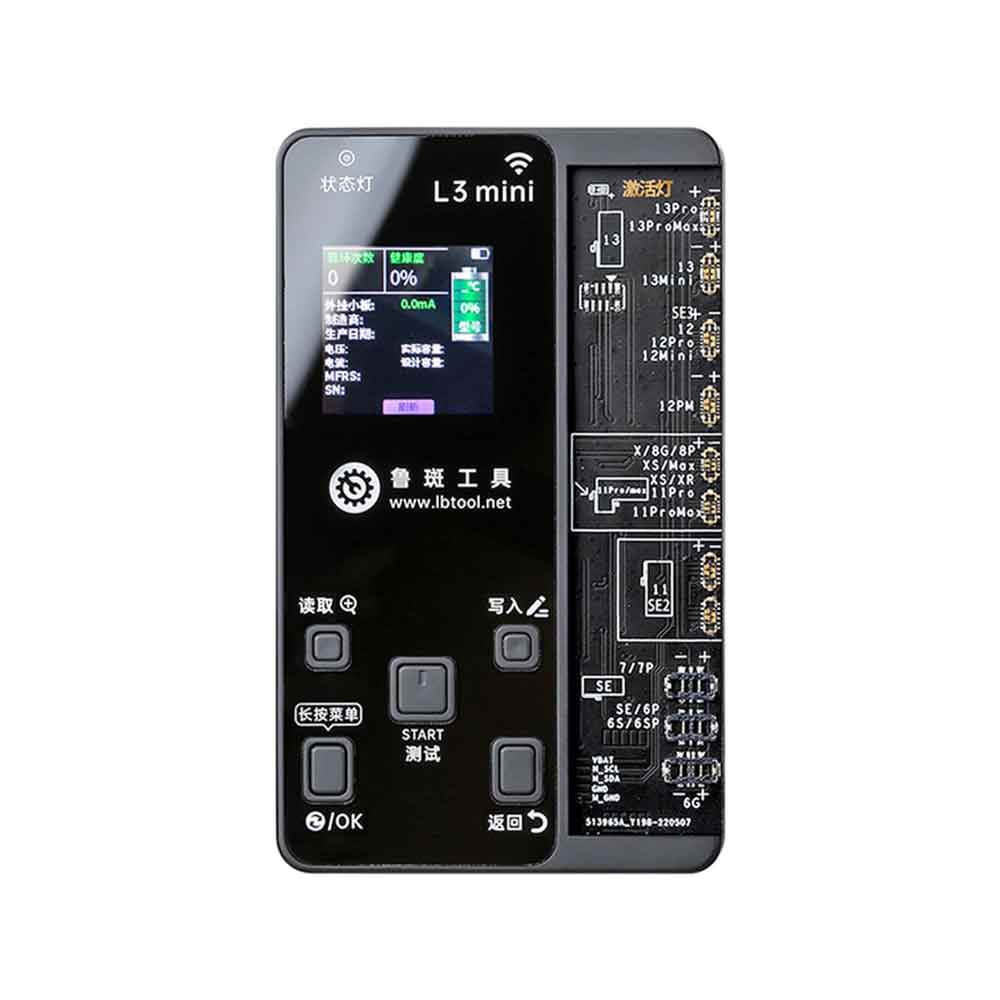

Luban L3 Mini Intelligent Repair Programmer for Phone 6-13ProMax
Features:
- Luban Intelligent Repair Instrument, for battery repair/face repair, supported models: all models of iPhone 6G/SE to 13Pro Max
- L3mini battery repair supported models: iPhone 6G to 13Pro Max, support battery health modification, cycle reset, battery data reading, modification, and programming
- Note: For models above iPhone 11, you need to install a Luban external device to modify data, and a built-in battery repair cable, models below 11 can directly modify battery data

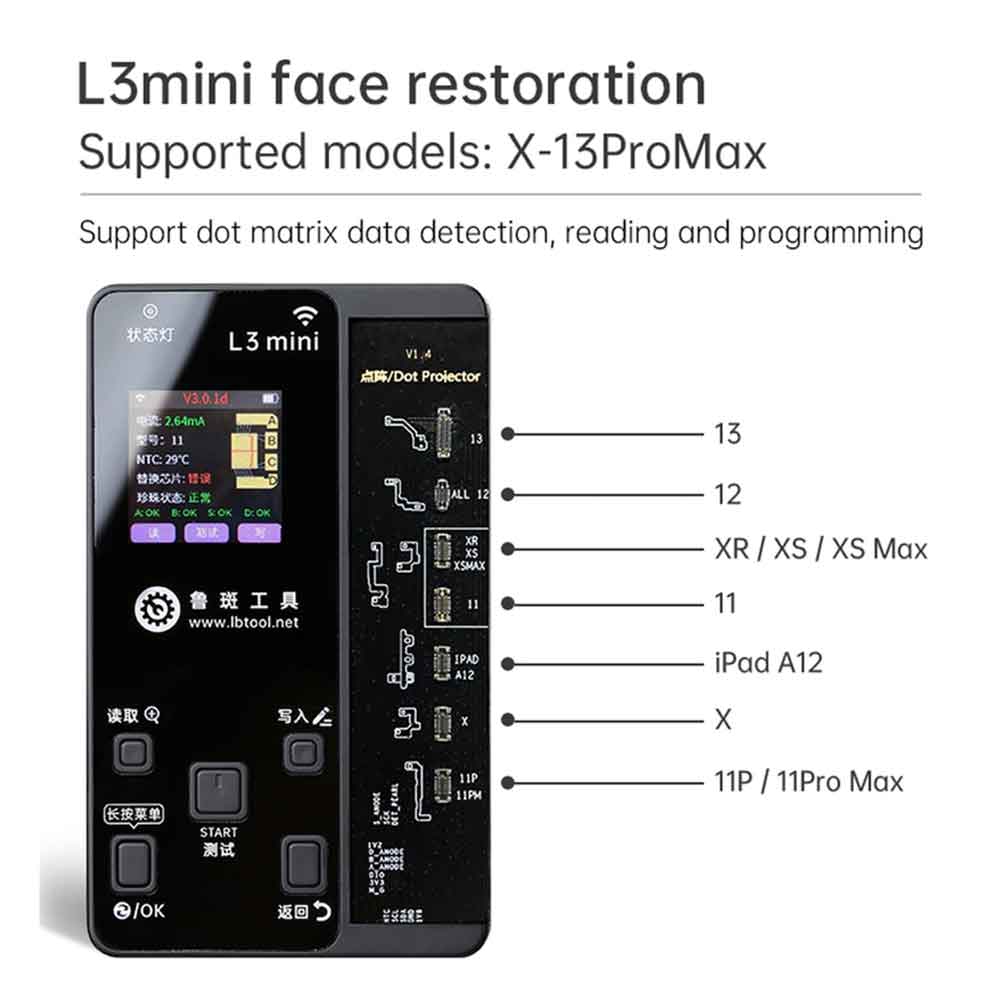

- L3mini face restoration, supported models: iPhone X to 13ProMax, support dot matrix data detection, reading, and programming
- Support face lattice data query, read lattice data, and never lose
- Reading through the device lattice is stored in the local device, not synchronized with the cloud
- Note: Clear is empty, it can be unbundled and saved in the cloud through the Luban tool computer
- Connect Wifi upgrade latest, enter settings, support language selection, WIFI connection, OTA upgrade, System Settings, About This Machine
Specification:
- Name: Luban Intelligent Repair Instrument
- Model: L3 mini
- Product size: 10.7*6.3*1cm
- Net weight: 59g (without battery)
- Built-in battery: without a battery
- Charging voltage: Limit 4.35V
- Input voltage: 5V
- Wifi/Bluetooth: 2.4G Wifi
- Battery Repair Operation Steps:
- Snap on the battery board (button the battery board to display the screen)
- Connect the battery with the Luban battery cable first
- Then snap it on the battery board (Close the seat to display the screen)
- Luban L3 mini supports backup data and writes data when there is a primary battery
Dot matrix repair operation steps:
- Buckle the dot matrix board
- Buckle the original dot matrix cable, click test
- Buckle the corresponding type of Luspot array cable, click to test (Or replace the dot matrix cable of the Ludot array chip)
- Write the saved data, and then perform the cable test
Package includes:
1 x Host
1 x Battery detection board
1 x Face detection board
